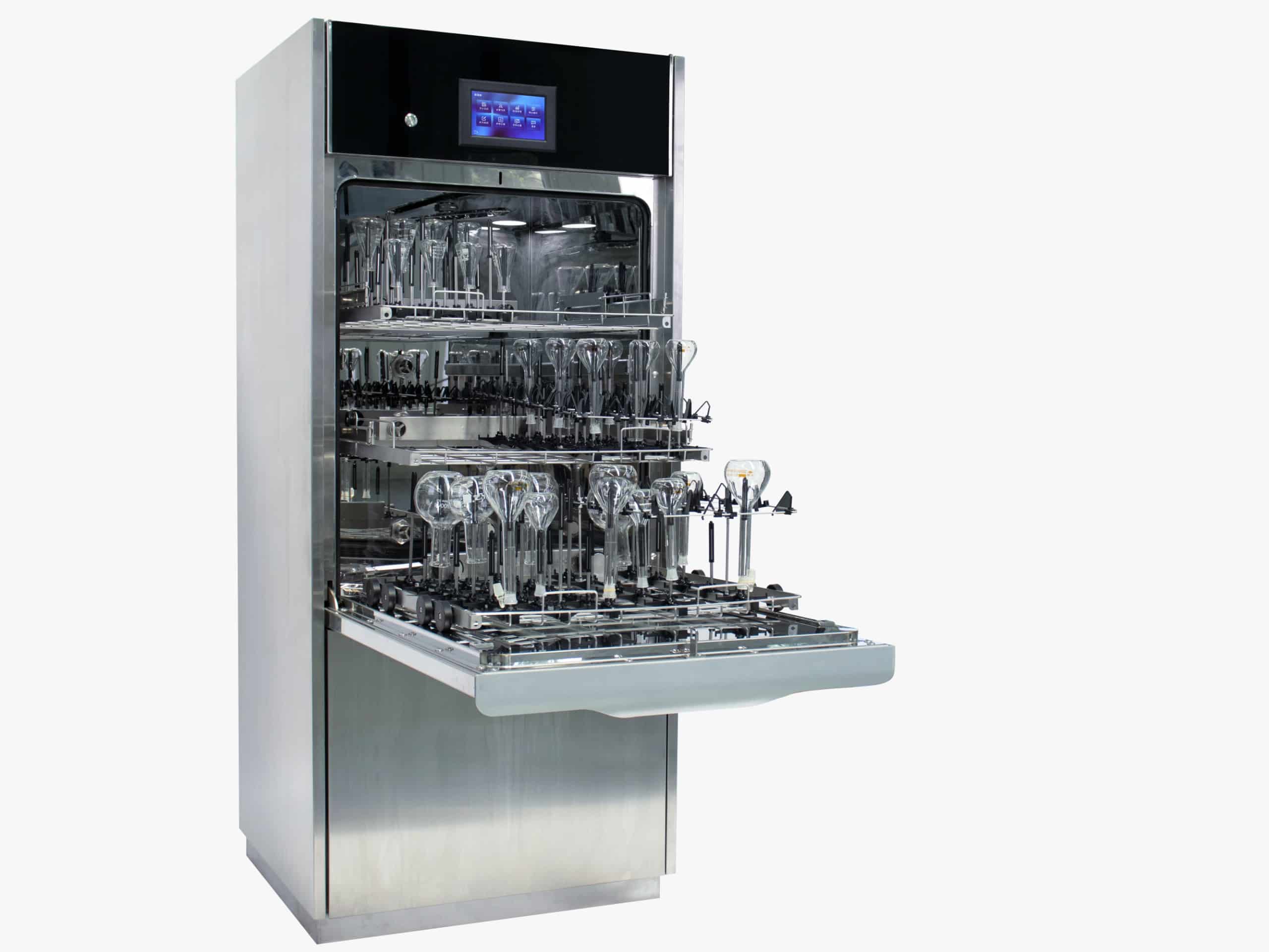

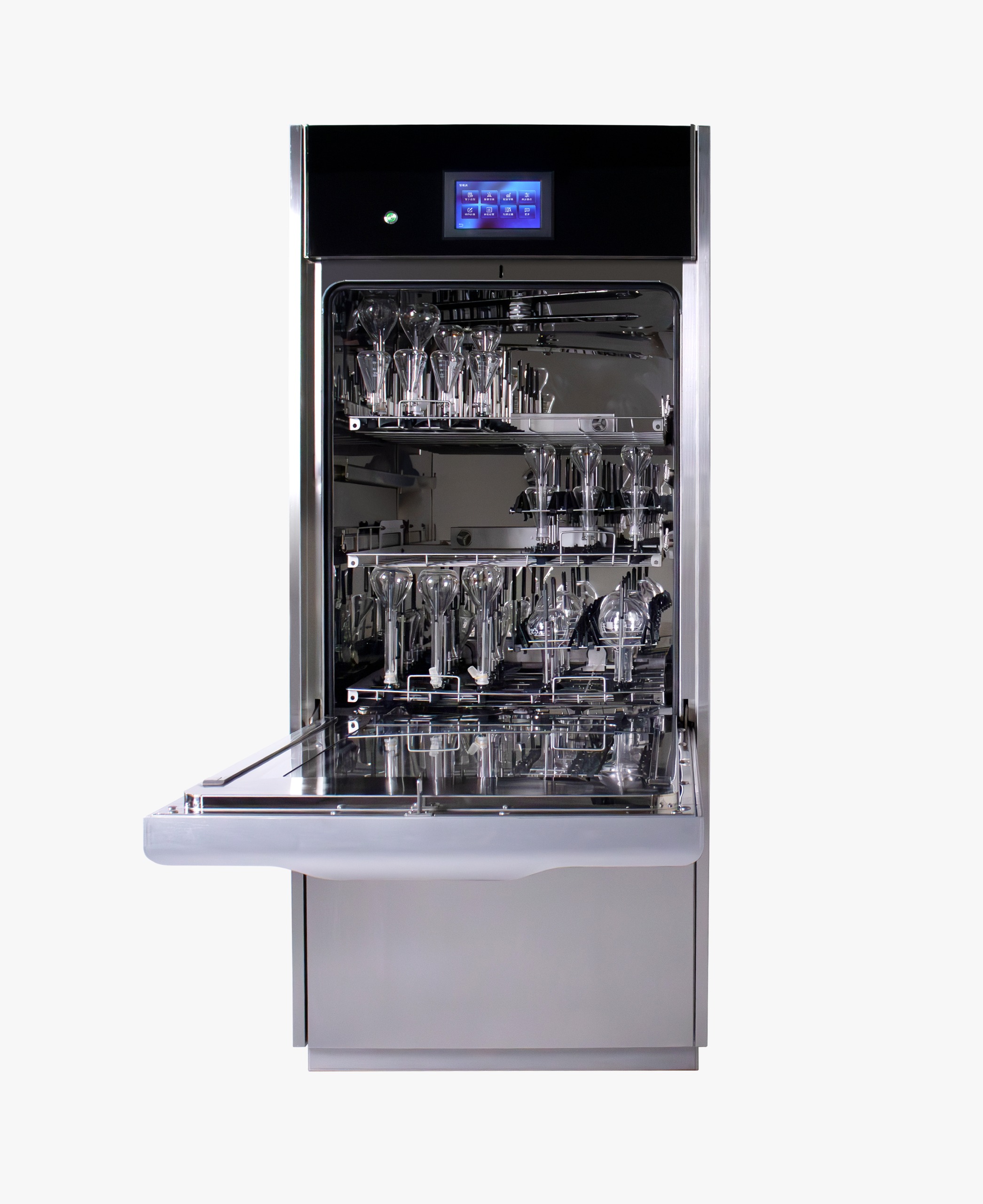

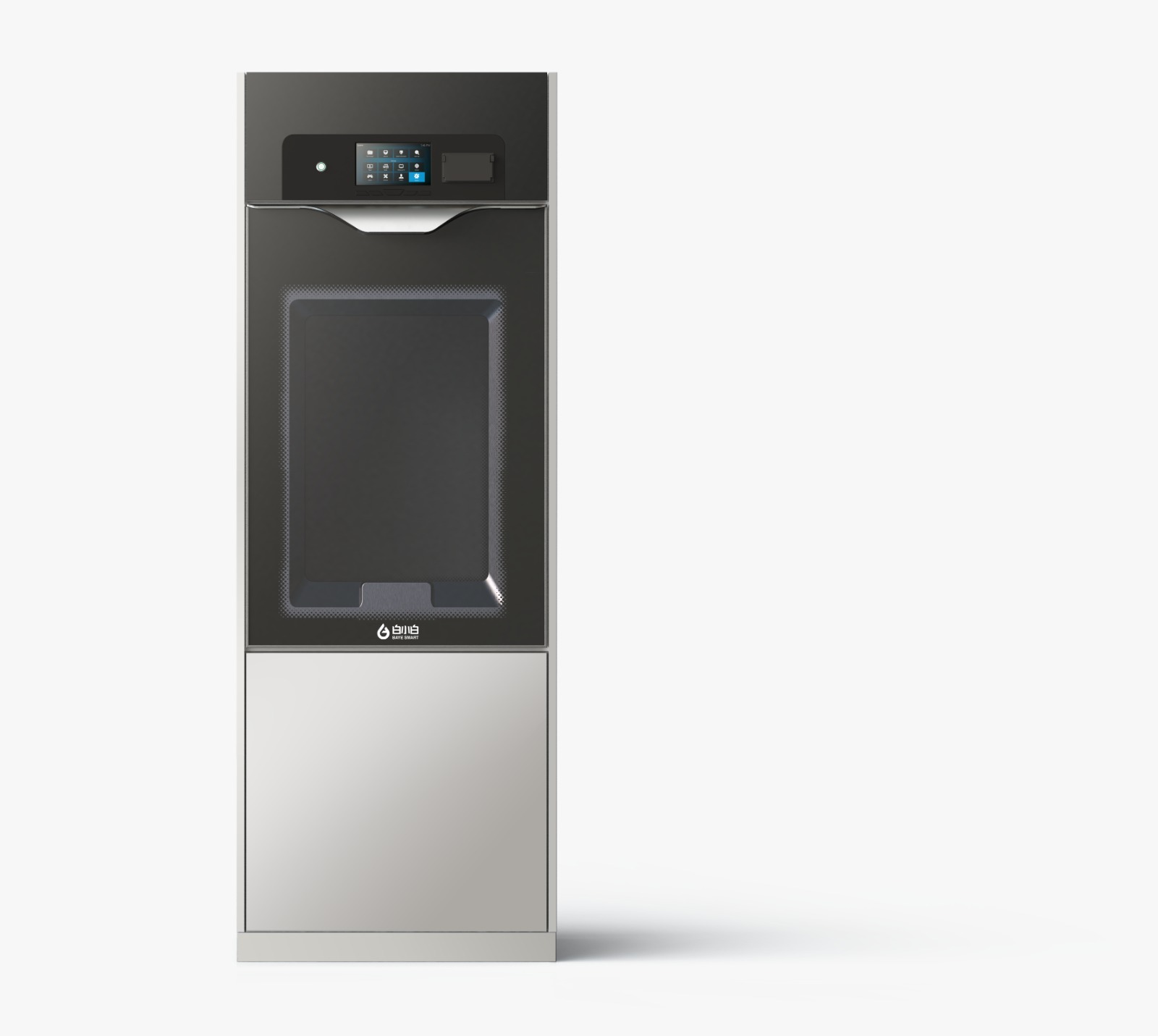

Premium Laboratory Glassware Washers (BS280CD & BS580D)

Inquiry Now
Category:

Product Description

The BS Series Laboratory Glassware Washers are advanced cleaning systems designed for high-throughput, contamination-free washing and drying of laboratory glassware, plasticware, and precision medical instruments. These washers combine powerful cleaning performance with flexible configuration and compact footprints.

Both models—BS280CD and BS580D—feature stainless steel construction, multi-level cleaning, and integrated drying systems with HEPA filtration. Engineered to meet the strict standards of pharmaceutical, contract laboratories, medical, and research laboratories, these systems deliver efficiency, safety, and reliability in every cycle.

BS Series Washer Dimensions & Customisation

The BS Series offers two sizes to accommodate varying lab needs:

  • BS280CD: A compact, freestanding or under-bench model, ideal for mid-sized laboratories
  • BS580D: A larger-capacity unit with 4 adjustable wash levels and a small footprint for space-limited labs

Customisable features include:

  • Flexible basket configurations for different glassware types
  • Programmable cycles with up to 200 free programme positions
  • Settings for various media types including plastic, metal, and rubberware
  • Telescopic runners for ergonomic loading/unloading (BS580D)
  • Chamber lighting and full-glass doors for visibility
  • Optional plinths and integrated dispenser pumps

Key Properties of BS280CD & BS580D Glassware Washers

These models deliver top-tier cleaning with a range of intelligent features:

Property BS280CD BS580D
Construction type and design
Construction type Freestanding, can be built- under, wide, without lid Freestanding, 1 glazed hinged door
Casing Stainless steel  Stainless Steel 304
Buzzer, acoustic signal at end of programme Yes Yes
Service-friendly design Yes Yes
Type of heating  Electricity Electricity
Adjustable height  No Yes
Number of wash levels   4
Loading and unloading with telescopic runners  No Yes
Door lock  AutoClose-Automatic Electric
Application
Suitable for laboratory glassware, plastic and rubber containers washing Yes Yes
Suitable for precision medical instrument washing Yes Yes
Capacity
Laboratory flasks per cycle 128(50ml) 108
Pipettes per cycle 98 196
Narrow-necked glassware per cycle   192
Test tubes per cycle   588
Performance data
Circulation pump, Qmax 600L/min 900L/min
Wash cabinet usable capacity 125L 270L
Shortest programme running time 15min
Maximum final rinse temperature 93 °C
Controls
Control type Touch Control Touch Control
Programme selection Touch on Screen Touch on Screen
Programmability Programmable Freely programmable
Programmes 20 20
Free programme positions 200 200
A0 value controls Yes
Time left display Yes Yes
Programme sequence display Yes Yes
Selectable display languages Yes Yes
Standard electrical connection
Electrical connection 3N AC 380-400V 50HZ 3N AC 380-400V 50HZ
Electric heater rating 6kW 9kW
Total rated load 7kW 11kW
Fuse rating 16A 25A
Length of mains connection cable 3.5m 3.5m
Possible voltage variant 1
Electrical connection AC 230V 50HZ
Electric heater rating 6kW
Total rated load 7kW
Fuse rating 25A
Water connection/drainage
Cold water 1 1
Cold water for steam condenser 1
Hot water 1 1
DI water 1 1
Required flow pressure 0.1-0.8MPa 0.1-0.8MPa
Maximum delivery head for drain pump 100cm
Maximum water hardness (cold water/hot water) 0.70mmol/l
recommended value
0.70mmol/l
recommended value
Drain pump 20 [DN] 22[DN]
Water protection system EL-Waterproof system
Dimensions and weight
External dimensions, net height 875mm 1800mm
External dimensions, net width 900mm 785mm
External dimensions, net depth 710mm 765mm
External dimensions, gross height 1030mm 1950mm
External dimensions, gross width 1000mm 865mm
External dimensions, gross depth 800mm 845mm
Wash cabinet, usable height 500mm 860mm
Wash cabinet, usable width 500mm 650mm
Wash cabinet, depth 460mm 650mm
Rack height above floor 460mm 703mm
Net weight 150kg 250kg
Gross weight  180kg 300kg
Maximum floor load   4900N
Drying unit
Integrated drying unit Yes  Yes
Drying unit heating type   Electricity
Fan 0.5kW
Heater element 3kW  4.5 kW
Air throughput 80m³/h 145m³/h
Time setting in 1-minute increments 0-99 0-120
HEPA filter class H14 H14
HEPA filter filtration efficiency (in accordance with DIN EN 1822) 100.00% 100.00%
Emissions data
Emission sound pressure level in the workplace <59 dB(A) re 20 μPa
Heat dissipation into the room 1.40MJ/h 1.67 MJ/h
Classified discharge of polluted water Yes Yes
Cooling emissions Yes Yes
Sound pressure LpA in cleaning and drying   <63 dB(A) re 20 μPa
Features
Additional integrated dispenser pumps (optional) Yes
1 dispenser pump for liquid cleaning agent Yes
1 dispenser pump for neutralising agent Yes
2 integrated hose dispenser pumps for liquid media   Yes
Steam condenser Yes Yes
Conductivity monitoring Yes
Multi-component filter system Yes Yes
Integrated hot air drying   Yes
Variable-speed pump Yes
Half load identification Yes  Yes
Dry Hi-efficiency Yes
Setting options for process chemicals (2 x 5L) Yes Yes
Wash cabinet seamlessly welded using laser technology Yes
Wash cabinet made from high-quality stainless steel (1.4404/316L)   Yes
Plinth   Yes
Chamber lighting   Yes
Interface for process documentation Yes  Yes
Extensive components (option) Yes
Standards, certs, symbols
CE Yes Yes
SGS (Electrical Safety) Yes Yes
EN ISO 15883-1-2009 Yes Yes
Standards, certs, symbols
GB 4793.1-2007 : 6.5.1 Yes Yes
GB 4793.1-2007 : 6.8 Yes Yes
GB/T 5226.1-2019 : 18.3 Yes Yes
Programmes
Thermal disinfection   Yes
Laboratory glassware reprocessing   Yes
Plastics   Yes
Connection options
RS 232 serial interface  Yes Yes

Applications of BS Series Glassware Washers

Both BS280CD and BS580D are engineered for a variety of laboratory environments:

  • Research laboratories and contract laboratories: Routine washing of flasks, beakers, pipettes, and test tubes
  • Pharmaceutical and biotech labs: Contamination-free reprocessing of glassware
  • Medical facilities: Washing of precision instruments and components
  • Chemical and materials science: Cleaning of heat and solvent-resistant labware
  • Environmental testing labs: Automated and repeatable wash cycles with trace residue control

The BS580D also supports high-volume glassware processing with up to 580 x 25ml flasks per cycle, ideal for labs with intensive throughput.

Work with Leading Lab Glassware Washer Suppliers in Australia

M-Kube is a trusted distributor of Hanon/ Bayes Smart laboratory equipment in Australia. We offer local support, custom setup consultations, and timely delivery across the country.

Why choose M-Kube:

  • Expertise in laboratory automation and glassware cleaning systems
  • Assistance with installation, validation, and compliance
  • Competitive pricing with reliable supply chain access
  • Technical support and spare parts availability
  • Custom configurations tailored to Australian lab standards

Trusted by Industries Worldwide – Your Global Partner in Laboratory Efficiency

Bayes Smart laboratory washers are used in pharmaceutical companies, contract laboratories, universities, and government labs worldwide. Paired with M-Kube’s local service and support, the BS Series offers global quality with Australian convenience.

Whether you’re managing a compact clinical lab or a large-scale research facility, M-Kube provides you with the equipment and expertise you need to stay clean, compliant, and efficient.
