Cylindrical Cell Preparation

Categories: Battery Consumables, Battery Research

Product Description

Cylindrical Cell Preparation is a critical step in lithium-ion battery research and manufacturing. High-quality Cylindrical Cell Components ensure durability, safety, and performance in cells such as 18650, 21700, 26650, and 32650 cylindrical battery cells. At M-Kube, we supply premium cylindrical cell cases, caps, gaskets, and other essential components to support advanced research and industrial requirements.

Precision Cylindrical Cell Components by M-Kube

M-Kube offers one of the finest quality and precision cylindrical cell components for battery research. Our range includes:

Cases and Caps

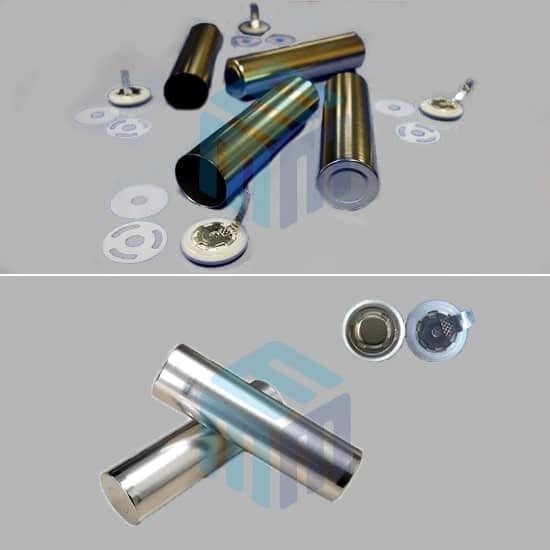

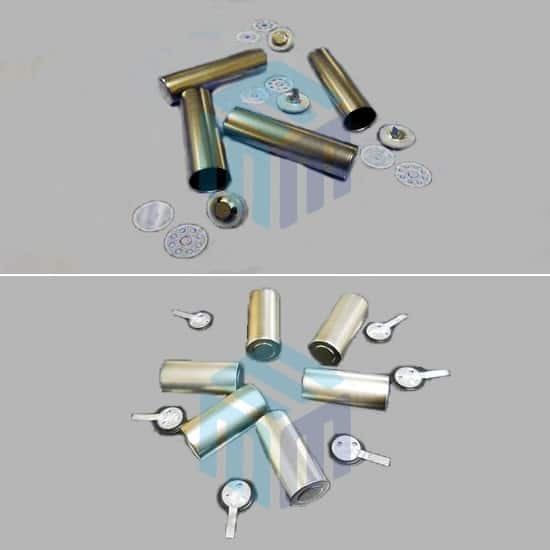

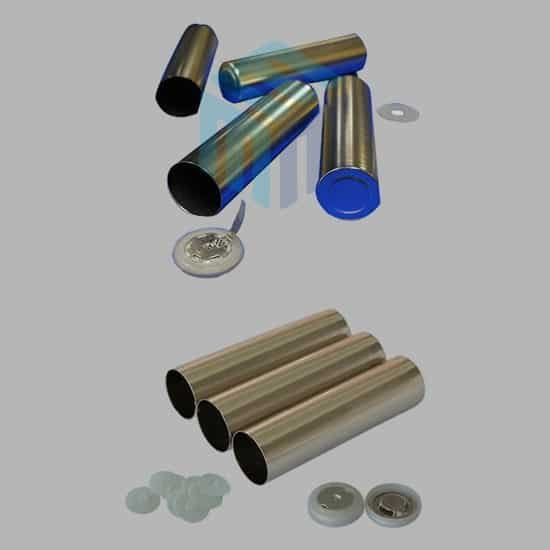

Cylindrical Cell Case with Anti-Explosive Cap and Insulation O-Ring
Cylindrical Battery Case
Stainless Steel Cell Case with Anti-Explosive Cap and Insulation O-Ring

Safety Valve

Designed to release internal pressure and ensure operational safety.

Seal O-Ring & Insulating Gasket

High-precision O-rings and insulating gaskets to prevent electrolyte leakage and ensure insulation.

Sub-components of the Safety Valve Structure

Includes diaphragm, rupture disc, and additional sealing elements for enhanced safety.

Essential Equipment for Cylindrical Cell Assembly:

Electrode Cutting & Punching Systems – Achieve precise electrode dimensions for consistent performance.
Vacuum Drying Ovens – Effectively remove moisture and solvents to enhance cell stability.
Calendering & Slitting Machines – Control electrode density, thickness, and uniformity before winding.
Electrode Winding Machines – Guarantee tight, uniform jelly-roll structures for maximum efficiency.
Spot/Ultrasonic Welding Units – Deliver strong, reliable tab and lead connections.
Electrolyte Filling Systems – Enable accurate vacuum-assisted electrolyte injection.
Crimping & Sealing Machines – Ensure secure closure of cell cases with leak-proof sealing.
Formation & Degassing Equipment – Support first-cycle charging, degassing, and electrode stabilization.

Applications of Cylindrical Cell Preparation

Battery Research Labs: For prototyping and testing new lithium-ion chemistries.
Energy Storage Systems: Ensuring reliable performance in ESS applications.
Electric Vehicles (EVs): Used in 18650 and 21700 cylindrical cells for high-energy density and safety.
Consumer Electronics: Powering devices that require compact, long-lasting cylindrical batteries.
Industrial Equipment: Supporting advanced energy solutions with durable cylindrical cells.

Why Choose M-Kube?

High-quality cylindrical cell components tailored for research and industrial use.
Wide range covering 18650, 21700, 26650, 32650 cylindrical cells.
Trusted supplier across India, ensuring timely delivery and technical support.

📞 Call us at +91-9898892994 or 📧 email us at marketing@mkubeenterprise.co.in to discuss your cylindrical cell preparation requirements.

Product FAQ's

What are the cylindrical cell formats?

Cylindrical cells come in standard formats like 18650 (18×65 mm), 21700 (21×70 mm), 26650 (26×65 mm), and 32650 (32×65 mm). The numbers indicate diameter and length in millimeters. 21700 cylindrical cells are widely used in EVs and energy storage for higher energy density.

What are the characteristics of cylindrical cells?

Cylindrical cells offer high mechanical stability, easy heat dissipation, standardized sizes, and good energy density. They are commonly used in power tools, electric vehicles, and battery packs due to their reliability and long cycle life.

What is the specification of a cylindrical cell?

A typical 21700 cylindrical cell has:

Nominal Voltage: 3.6V–3.7V

Capacity: 4000–5000 mAh

Cycle Life: 500–2000+ cycles

Max Charge/Discharge Current: Varies by model (up to 10A or more)
Specifications can vary based on the chemistry (e.g., NMC, LFP, LCO) and manufacturer.

What are the main components of a cylindrical battery cell?

A cylindrical cell includes the anode (usually graphite), cathode (like NMC or LFP), separator, electrolyte, metal casing, current collectors, and safety components like a PTC and CID.

What is the standard size and format of 21700 cylindrical cells?

A 21700 cylindrical cell measures 21 mm in diameter and 70 mm in length. It is widely used in EVs and energy storage due to its higher capacity compared to 18650 cells.

How is cylindrical cell preparation different from coin cell preparation?

In cylindrical cell preparation, electrodes are wound into a jelly-roll structure, inserted into a metal casing, filled with electrolyte, sealed, and aged. Coin cell preparation uses stacked layers and crimping in stainless steel cases.

What safety features are included in cylindrical cell components?

Cylindrical cells contain built-in safety elements like PTC (positive temperature coefficient), CID (current interrupt device), and vent caps to prevent overpressure, overheating, or short circuits.
