Product Description

Customized Boron Nitride Products – Precision BN Ceramic Components for Indian Industry

Boron Nitride (BN) is a high-performance ceramic material known for its exceptional thermal stability, electrical insulation, machinability, and chemical inertness. Its unique combination of properties makes it ideal for advanced engineering, metallurgical processes, semiconductor manufacturing, high-temperature applications, and precision research environments.

M-Kube provides complete Boron Nitride customized solutions, offering high-purity Boron Nitride components, precision-machined BN parts, and fully engineered Boron Nitride custom shapes for laboratories and industries across India. Whether you need Boron Nitride blocks, BN blanks, or fully machined complex structures, we design and supply products tailored to your exact specifications.

Boron Nitride Customization Services for Indian R&D and Manufacturing

At M-Kube Enterprise, we develop boron nitride products using high-purity hot-pressed or pyrolytic BN (HPBN/PBN), engineered to perform in challenging environments where other ceramics fail. Our boron nitride customization applications are ideal for processes involving molten metals, reactive chemicals, or ultra-high temperatures.

Custom BN Options Available:

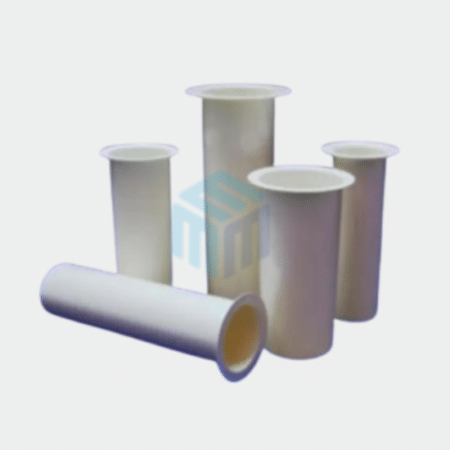

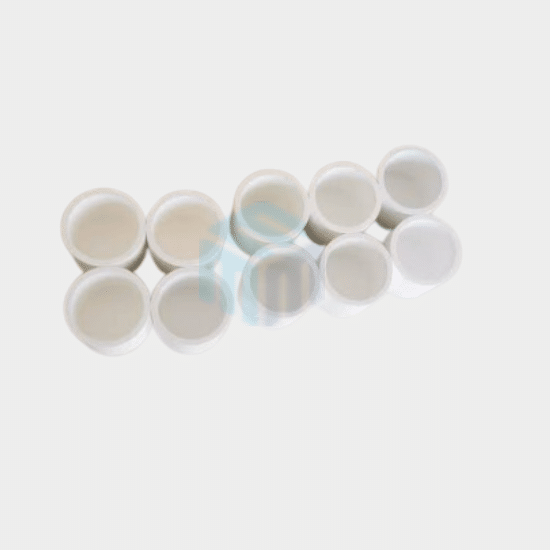

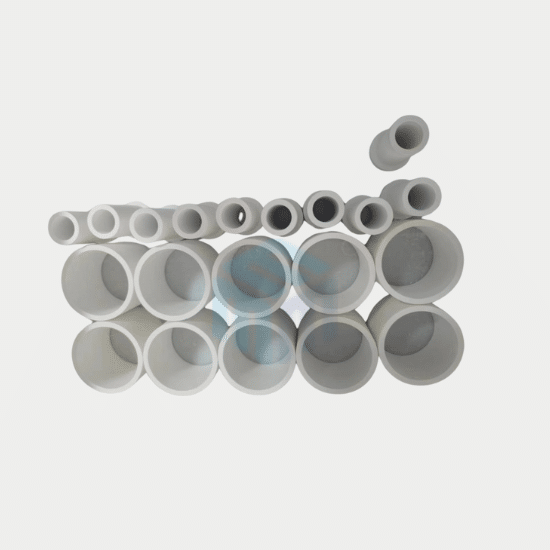

Shapes: crucibles, rings, rods, tubes, insulators, sleeves, plates
Boron nitride blanks and blocks for in-house machining
Wall thickness and density tailoring (standard and high-density BN)
Surface finishing and prototype fabrication
Tight tolerances for precision components

Our BN components operate safely in atmospheres up to 2300°C in inert conditions and resist wetting by molten metals and slags—making them perfect for India’s research and metallurgy segments.

Key Features of M-Kube’s Boron Nitride Components

Our customized boron nitride parts offer an exceptional combination of properties:

- Excellent Electrical Insulation with low dielectric constant
- Superior Machinability for complex geometries and tight tolerances
- Extreme Chemical Inertness—non-reactive with most molten metals
- Low Thermal Expansion for dimensional accuracy
- High Thermal Conductivity ideal for heat spreaders & thermal management
- Non-wetting with molten metals, perfect for metallurgical applications
- Lightweight Material with excellent structural stability

These characteristics make boron nitride ceramic parts superior to alumina or quartz in many Indian applications.

Typical Technical Specifications

Composition		BN>99.7%	BN>99.3%	BN+AL+SI	BN+ZR+AL	BN+SIC	BN+ZrO2	BN+ALN
Color		White	White	Grey White	Grey White	Greyish-green	Grey White	Greyish-green
Dnesity (g/cm3)		1.6	2	2.2-2.3	2.25–2.35	2.4–2.5	2.8–2.9	2.8–2.9
Electrical resistivity (Ω.cm)		>1014	>1014	>1013	>1013	>1012	>1012	>1013
Bending strength (Mpa)		18	35	65	65	80	90	90
Compressive strength (Mpa)		45	85	145	145	175	220	220
Thermal expansion coefficient (10-6/K) (25c-		1.5	1.8	2	2	2.8	3.5	2.8
-1200C)		1.5	1.8	2	2	2.8	3.5	2.8
Thermal conductivity (W/mk)		35	40	35	35	45	30	85
	Air	900	900	900	900	900	900	900
Service temperature C	Vacuum	1800	1800	1750	1750	1800	1800	1750
	Inert atmosphere	2100	2100	1750	1750	1800	1800	1750
Applications		High	High	Powder	Powder	Powder	Powder	Powder
Applications		temperature	temperature	Metallurgy	Metallurgy	Metallurgy	Metallurgy	Metallurgy

Boron nitride ceramics Regular quality
Composition	%	99
Dnesity	g/cm3	>2
Leeb hardness	HL	300
Bending strength	Mpa	35
Thermal expansion coefficient	(10-6/K) (25c–120	-1^2.5
Thermal conductivity	W/mk	50
Max working temperature	Air	1200C
	Vacuum	2000C
	Inert atmosphere	2300C
Normal temperature resistivity	Ω.cm	>1014

Applications of Boron Nitride Custom Parts in India

M-Kube’s boron nitride blocks, blanks, and components are widely used in:

Semiconductor wafer handling parts
Metallurgical non-wetting components
High-temperature insulators & supports
Vacuum furnace fixtures
Powder metallurgy and sintering aids
Thermal management blocks & heat spreaders
Crucibles, evaporation boats & coating fixtures
Ceramic sealing rings, stoppers, and diffusion components

Need alternatives? We also supply alumina ceramic tube, zirconia, and silicon nitride for various high-temperature or wear-resistant needs.

Quality and Compliance

All Boron Nitride products supplied by M-Kube are manufactured in ISO-certified facilities with strict quality checks for purity, density, surface finish, thermal properties, and dimensional accuracy. Our BN components meet global performance standards required for advanced engineering and research environments.

Why Choose M-Kube Enterprise for Boron Nitride Customization in India?

M-Kube Enterprise is India’s trusted supplier for custom boron nitride products due to:

Access to premium HPBN and PBN raw materials
Full customization with CNC machining and precision fabrication
High-purity BN blocks, blanks, and ceramic components
Competitive pricing and fast delivery
Technical support from concept to final machining
- Expertise in handling complex shapes & specialty applications

We serve India’s top institutions and manufacturers with reliable boron nitride components built to perform under extreme conditions.

Order Boron Nitride Custom Components from M-Kube Enterprise India

Looking for precision boron nitride blocks, BN blanks, or fully machined ceramic parts? M-Kube provides expert solutions for all your boron nitride customization applications in India.

✅ Boron nitride products for electrical, thermal, and chemical insulation
✅ Machinable, durable, and high-performance BN ceramic solutions
✅ Custom parts with quick turnaround and expert support

📞 Call us at +91-9898892994
📧 Email us at marketing@mkubeenterprise.co.in
to discuss your design or request a quote for your boron nitride components today!

Product FAQ's

Is there a difference between Boron Nitride Components and Boron Nitride Custom Parts?

Yes. Boron Nitride Components refers to standard shapes and items, while Boron Nitride Custom Parts are specially produced according to specific designs, dimensions, or customer specifications.

Can Boron Nitride Custom Parts be ordered in specific sizes?

Yes, Boron Nitride Custom Parts can be manufactured to precise sizes and geometries based on provided drawings or technical details.

Are drawings required to produce Boron Nitride Custom Parts?

Typically, technical drawings or specifications are needed so that Boron Nitride Custom Parts can be manufactured accurately to the required dimensions and tolerances.

Are different grades of boron nitride used in Boron Nitride Components?

Yes, Boron Nitride Components can be made from various BN grades, which differ in purity, density, and mechanical properties to suit different technical requirements.

Are Boron Nitride Custom Parts available in small quantities?

Many suppliers can produce Boron Nitride Custom Parts in small quantities, depending on the complexity and manufacturing process involved.

Are BN Components and Boron Nitride Ceramic the same?

BN Components refer to parts or custom shapes made from Boron Nitride Ceramic. They are essentially the same in material but vary in design and end use.

What is the difference between a Boron Nitride Block and a Boron Nitride Blank?

A Boron Nitride Block typically refers to a larger, more solid form, while a Boron Nitride Blank is often a raw, unfinished piece meant for machining into precise shapes.

Are all Boron Nitride Products made from the same BN grade?

No, Boron Nitride Products may vary by purity, density, and binder content depending on the specific BN grade used during manufacturing. Customer has to share their end use and purity requirement to ensure they use the appropriate grade.
