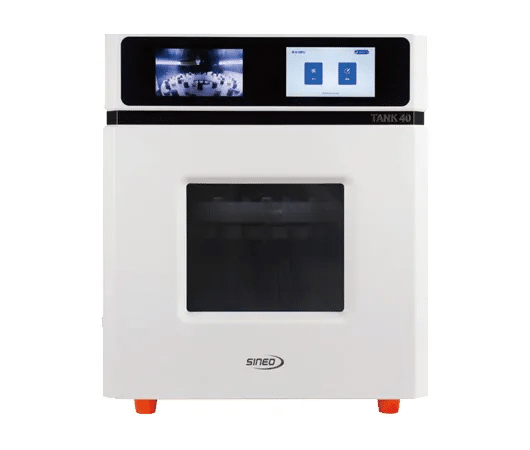

Microwave Digestion Workstation (TANK 40 Model) and (TANK eco Model)

Name: M-Kube Enterprise
Address: 2, Shital Kunj Society,, Navrangpura, Ahmedabad, Gujarat,, 380009,, IN
Telephone: +91 9898892994

Categories: Digestion/Extraction Systems, Sample Preparation Equipments

Product Description

The Microwave Digestion System is an advanced laboratory solution designed for rapid, safe, and efficient sample preparation using microwave-assisted heating. It is widely used for microwave digestion for ICP analysis, trace metal analysis, and chemical synthesis, offering complete digestion of complex samples with excellent reproducibility.

M-Kube supplies high-performance Microwave Digestion Workstations and Microwave Synthesis Workstations suitable for environmental testing, food analysis, pharmaceuticals, mining, metallurgy, and research laboratories across India. With precise temperature and pressure control, these systems significantly reduce digestion time while ensuring operator safety and analytical accuracy.

Key Features of Microwave Digestion & Synthesis Systems

Fast and efficient microwave digestion for ICP, ICP-MS, and AAS analysis
Uniform microwave heating for complete and reproducible digestion
High-pressure, corrosion-resistant digestion vessels
Real-time temperature and pressure monitoring
Touchscreen-based intelligent control system
Multiple safety protections for over-temperature and over-pressure
Suitable for digestion, synthesis, and extraction applications
Environment-friendly and reagent-efficient operation

Typical Technical Specifications

Specification	Tank Eco Model	Tank 40 Model
Power supply	220~240VAC 50/60Hz 20A	220-240 VAC 50/60 Hz 20 A
Microwave source	2450 MHz, high-energy microwave field transmission	2450 MHz high-energy microwave field
Installed power	1800 W	3800 W
Maximum output power	1000 W	2000 W
Microwave cavity	Large-volume 316L stainless steel cavity, internally and externally coated with multi-layer corrosion-resistant Teflon	Grade 316L stainless steel microwave resonant cavity, with a wall thickness of more than 3 mm, sprayed with multi-layer PFA coating
Explosion-proof door design	Self-popping explosion-proof sliding furnace door, integrated structure design with prevention of microwave leakage
Pressure measurement system	High-precision semiconductor pressure sensor, with pressure control range: 0 ~ 15 MPa, accuracy ± 0.01 MPa
Temperature measurement	Full vessel IR temperature control system, with temperature control range: 60 ~ 305°C, accuracy: ± 0.1°C;
control system	Optional multi-core integrated optical fiber temperature control system, with temperature control range: -40 ~ 305°C, accuracy: ± 0.1°C
Passive protection system	COT real-time abnormality monitoring system, which can automatically beep and cut off the microwave when an abnormality occurs to any reaction vessel; Safety Bolt design, providing vertical and quantitative release of overpressure
Software system	Android system; Built-in method library; Cloud methods, data storage and sharing; Wi-Fi remote connection, etc.	Android operating system (8G memory), built-in video SOP, application method library, electronic door lock, etc.
Communication interface	USB interface and internet interface
Exhaust system	High-power corrosion-resistant turbo fan, high-efficiency turbulent air cooling, less than 15 minutes cooling down to room temperature	Automatically adjusted air volume, cooling to room temperature in less than 15 minutes
Working environment	0~40°C / 15~80% RH	0 ~ 40°C / 15 ~ 80% RH
Physical size / net weight	480 mm × 560 mm × 575 mm (Width × depth × height) /45kg	600 mm x 685 mm x 660 mm (WDH)/62 kg
Model of reaction vessel	MP-100	Refer table below
Batch capacity	6/8/10 vessels and turntable configurations	Refer table below
Material of inner vessel	TFM	Refer table below
Material of outer vessel	Aerospace composite fiber	Refer table below
Rotor frame type	Single Frame type	Refer table below
Volume of reaction vessel	100 ml	Refer table below
Designed temperature	300°C	Refer table below
Designed pressure	15 MPa (2,200 psi)	Refer table below

Tank 40 Vessel Specification

Vessel type	High-Pressure	Auto-Release	High-Pressure	Ultra High-Pressure	High-Pressure (Frame)
Vessel Numbers	40 vessels	24 vessels	40 vessels	18 vessels	12 vessels
Inner vessel material	TFM	TFM	TFM	TFM	TFM
Outer vessel material	Aerospace composite fiber	Aerospace composite fiber	Aerospace composite fiber	Aerospace composite fiber	Aerospace composite fiber
Inner vessel volume	70 ml	55 ml	110 ml	100 ml	100 ml
Maximum temperature	300°C	300°C	300°C	320°C	300°C
Maximum Pressure	15 MPa	15 MPa	15 MPa	15 MPa	15 MPa

Applications of Microwave Digestion & Synthesis Systems

Microwave digestion for ICP / ICP-MS / AAS analysis
Environmental sample preparation (soil, water, sludge)
Food and feed analysis
Pharmaceutical and chemical sample digestion
Geological and mining sample preparation
Microwave synthesis reaction workstation applications
Microwave extraction reaction workstation processes
Academic and industrial R&D laboratories

Explore related laboratory instruments from M-Kube:

Quality and Compliance

All M-Kube Microwave Digestors and Microwave Synthesis Workstations are supplied from ISO-certified manufacturing facilities and comply with international laboratory safety and analytical standards. Each system is tested for performance consistency, safety, and durability before delivery.

Why Choose M-Kube for Microwave Digestion Systems?

Advanced solutions for digestion, synthesis, and extraction
Competitive pricing with reliable after-sales support
High safety standards with intelligent control systems
Suitable for research, QC, and industrial laboratories

Get a Quote

Looking for a reliable Microwave Digestion System, Microwave Digestor, or Microwave Synthesis Workstation for your laboratory?

📞 Call: +91 9898892994
📧 Email: marketing@mkubeenterprise.co.in

Product FAQ's

Is a Microwave Digestor safe for high-pressure sample digestion?

Yes — microwave digestors like the TANK 40 and TANK eco models are designed with reinforced vessels, pressure monitors, and multiple safety systems to endure high temperature and pressure conditions while protecting operators.

How many samples can the TANK 40 Microwave Digestion Workstation process at once?

The TANK 40 model supports up to 40 digestion vessels simultaneously, making it suitable for high-throughput labs that need to handle large sample batches efficiently.

Can the Microwave Digestion Workstation run both digestion and synthesis sequences?

Certain models, especially the TANK eco, support switching between microwave digestion, microwave extraction, and microwave synthesis sequences, making it versatile for various laboratory workflows.

Is the microwave digestion system suitable for elemental labs using ICP-MS or ICP-OES?

Absolutely — microwave digestion systems are widely used in elemental laboratories to prepare samples for ICP-OES or ICP-MS, ensuring complete digestion of complex matrices.

What kinds of samples can be processed in this microwave workstation?

Microwave digestion workstations handle a wide range of sample types — soil, food, biological tissue, environmental samples, polymers, and metals — prior to ICP or other analyses.

What software features are included in the Microwave Digestion Workstation?

The workstation integrates smart software with method libraries, touchscreen control, remote operation, and data logging, helping manage experiments and protocols more effectively.
