Melting Point Apparatus (MP420/MP430 and MP450/MP470/MP490 Models)

Name: M-Kube Enterprise
Address: 2, Shital Kunj Society,, Navrangpura, Ahmedabad, Gujarat,, 380009,, IN
Telephone: +91 9898892994

Categories: Physical Optics, Analytical Testing Equipment

Product Description

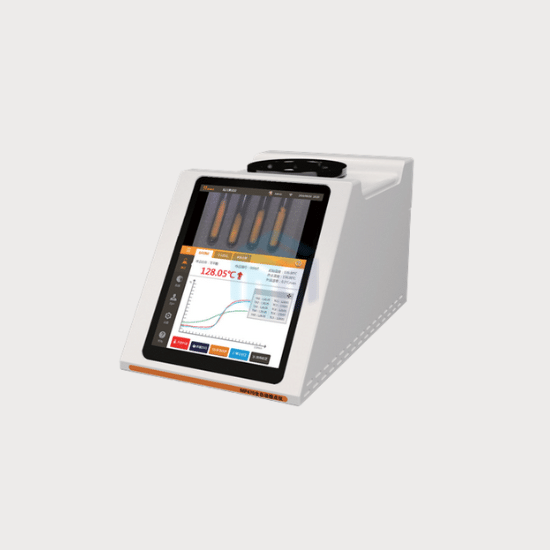

The MP420/MP430 Melting Point apparatus and MP450/MP470/MP490 Automatic Melting Point Apparatus are advanced devices designed to measure the melting point of various substances with high accuracy and reliability. These models integrate video technology, offering a more intuitive approach to melting point determination. With features like video display, real-time monitoring, and the ability to track multiple samples simultaneously, they enhance the overall testing experience, providing users with detailed, reproducible, and reliable results.

Key Features for Melting Point Apparatus:

Visual and Automatic Determination: These models include a color display and video camera to visually observe the phase transition during the melting process. The video replay function enables users to review and analyze the melting process in detail.
Multiple Sample Testing: Capable of testing up to 4 samples concurrently, each with independent tracking and recording, which increases efficiency for high-throughput laboratories.
User Management and Multi-User ID Function: These systems feature a multi-user ID function that allows for the addition, deletion, and jurisdiction setting of user profiles. This ensures controlled access to the device, meeting FDA 21 CFR Part 11 compliance requirements.
Touchscreen Interface: The apparatus is equipped with an 8-inch capacitive touch screen, powered by an intuitive Android operating system, offering ease of operation and improved user experience.
Data Processing & Exporting: Detailed results, including methods, atlases, and other relevant data, can be stored for future reference. Users can connect a printer or export the data for documentation or analysis purposes.

Technical Specifications

Specification	MP420	MP430	MP450	MP470	MP490
Capillary position capacity	4	4	4	4	4
Capillary size	inner 0.9 ~ 1.1 mm	inner 0.9 ~ 1.1 mm	inner 0.9 ~ 1.1 mm	inner 0.9 ~ 1.1 mm	inner 0.9 ~ 1.1 mm
Magnification of lens	8	8	8	8	8
Display	Color 8-inch Touch Screen	Color 8-inch Touch Screen	Color 8-inch Touch Screen	Color 8-inch Touch Screen	Color 8-inch Touch Screen
Temperature range	RT-300℃	RT-350℃	RT-350℃	RT-400℃	RT-400℃
Temperature accuracy	0.4 at 200℃; 0.7 at 300℃	0.4 at 200℃; 0.7 at 300℃	0.4 at 200℃; 0.7 at 300℃	0.4 at 200℃; 0.7 at 300℃	0.4 at 200℃; 0.7 at 300℃
Temperature resolution	0.1℃	0.1℃	0.1℃	0.1℃	0.01℃
Temperature repeatability	0.2℃	0.2℃	0.2℃	0.2℃	0.2℃
Temperature gradients	0.1℃-20℃	0.1℃-20℃	0.1℃-20℃	0.1℃-20℃	0.1℃-20℃
Video & Camera	Camera	Video & Camera	Video & Camera	Video & Camera	Video & Camera
Video reply	No	Yes	Yes	Yes	Yes
Automatic find melting point	Manual	Manual	Automatic	Automatic	Automatic
Room capacity	8 GB	16 GB	16 GB	32 GB	128 GB
Graphic	0	0	100	200	500
Methods storage	10	30	30	80	200
Communication ports	USB x3, RS232, Wi-Fi, RJ45	USB x3, RS232, Wi-Fi, RJ45	USB x3, RS232, Wi-Fi, RJ45	USB x3, RS232, Wi-Fi, RJ45	USB x3, RS232, Wi-Fi, RJ45
Printer	Thermal printer	Laser printer/ Thermal printer	Laser printer/ Thermal printer	Laser printer/ Thermal printer	Laser printer/ Thermal printer
ID management	No	20	20	30	100
User classify	No	Yes	Yes	Yes	Yes
Data provenance	No	Yes	No	Yes	Yes
FDA 21 CFR part11	No	Yes	No	Yes	Yes

Applications for Melting Point Apparatus:

Pharmaceuticals: Used to determine the melting points of pharmaceutical compounds to assess purity and quality.
Chemicals & Polymers: Employed for analyzing the melting points of various chemicals, polymers, and materials in industrial settings.
Food Industry: Ideal for testing substances like fats, waxes, and oils to determine melting behavior.
Educational & Research: A valuable tool for labs conducting research in chemistry, material science, and related fields, providing a reliable and easy-to-use system for melting point determination.

Why Choose Melting Point Apparatus?

Intuitive and Advanced: The integration of video technology alongside traditional melting point determination allows for more accurate and observable analysis.
Efficiency: With the ability to test up to 4 samples at once, the system saves time while maintaining accuracy in results.
Compliant & Secure: Meets FDA 21 CFR Part 11 standards, offering secure user management and data handling for regulated environments.
Enhanced User Experience: The Android-powered touchscreen interface and easy-to-use design make operation simple, even for first-time users.
Comprehensive Data Export: The ability to store, print, or export data ensures seamless integration with other lab processes and documentation.

We, at M-Kube Enterprise, are an Indian company catering to:

– Premium quality laboratory equipment for analytical testing and sample preparation,

– Advanced instruments including Digital Automatic Polarimeters for precise optical rotation measurements,

– Best in class laboratory consumables,

– Customized ceramic and refractory metal product solutions for high temperature applications and

– Top notch battery Equipment and battery consumables.

We cater to various geographies like India, Australia, USA, Dubai, Indonesia, Malaysia, New Zealand, the Philippines, Singapore, South Korea, and Vietnam.

Our team of experts across different platforms can discuss and customize your requirements as per your needs. For more information, Please reach out to us on marketing@mkubeenterprise.co.in or call us on +91 9898892994 to discuss your projects and we will be happy to explain the products in detail, tailor them to fit your requirements, and share detailed product catalogues.

We look forward to be one of your most trusted research partners.

Product FAQ's

How does an automatic melting point apparatus ensure accuracy?

The automatic melting point apparatus uses precision sensors and controlled heating rates to maintain consistent temperature measurement accuracy.

What calibration method is used in a digital melting point apparatus?

Most digital melting point apparatus models are factory-calibrated but can also be verified using certified reference materials to ensure reliable readings.

Can a melting point apparatus measure multiple samples simultaneously?

Yes, advanced melting point instruments can analyze multiple capillary tubes at once, improving productivity and comparison consistency.

How fast does the melting point equipment heat up?

The melting point equipment typically features adjustable heating rates ranging from 0.1°C/min to 20°C/min, allowing controlled temperature ramping.

What type of display and control system does a digital melting point apparatus use?

Modern digital melting point apparatus units include high-resolution LCD or touch displays with intuitive interfaces for temperature setting and monitoring.

How is data recorded in an automatic melting point apparatus?

The melting point measuring instrument automatically records temperature data and can export results via USB or internal memory for documentation.

What kind of samples can be tested using aluminum capillary tubes?

The melting point equipment supports a wide range of organic and inorganic compounds, provided they are stable under controlled heating.

How does the instrument handle temperature uniformity?

The automatic melting point apparatus maintains even temperature distribution using advanced microprocessor controls and uniform heating blocks.

What kind of temperature range can be handled by M-Kube Melting point apparatus?

The automatic melting point apparatus comes in various configurations and can handle temperatures upto 400°C. You can contact M-Kube for more details about the various configurations.

What is difference between Slip Melting point and Automatic melting point apparatus? Is there a 2 in 1 model available?

Both, Slip Melting point and automatic melting point apparatus operate on different working principles for different applications. A 2-in-1 model is not possible. Slip melting point apparatus is mainly used for wax kind of products.
