DT12 Automatic Dissolution Sampling System
Inquiry NowProduct Description
Product Description – DT12 Automatic Dissolution Sampling System

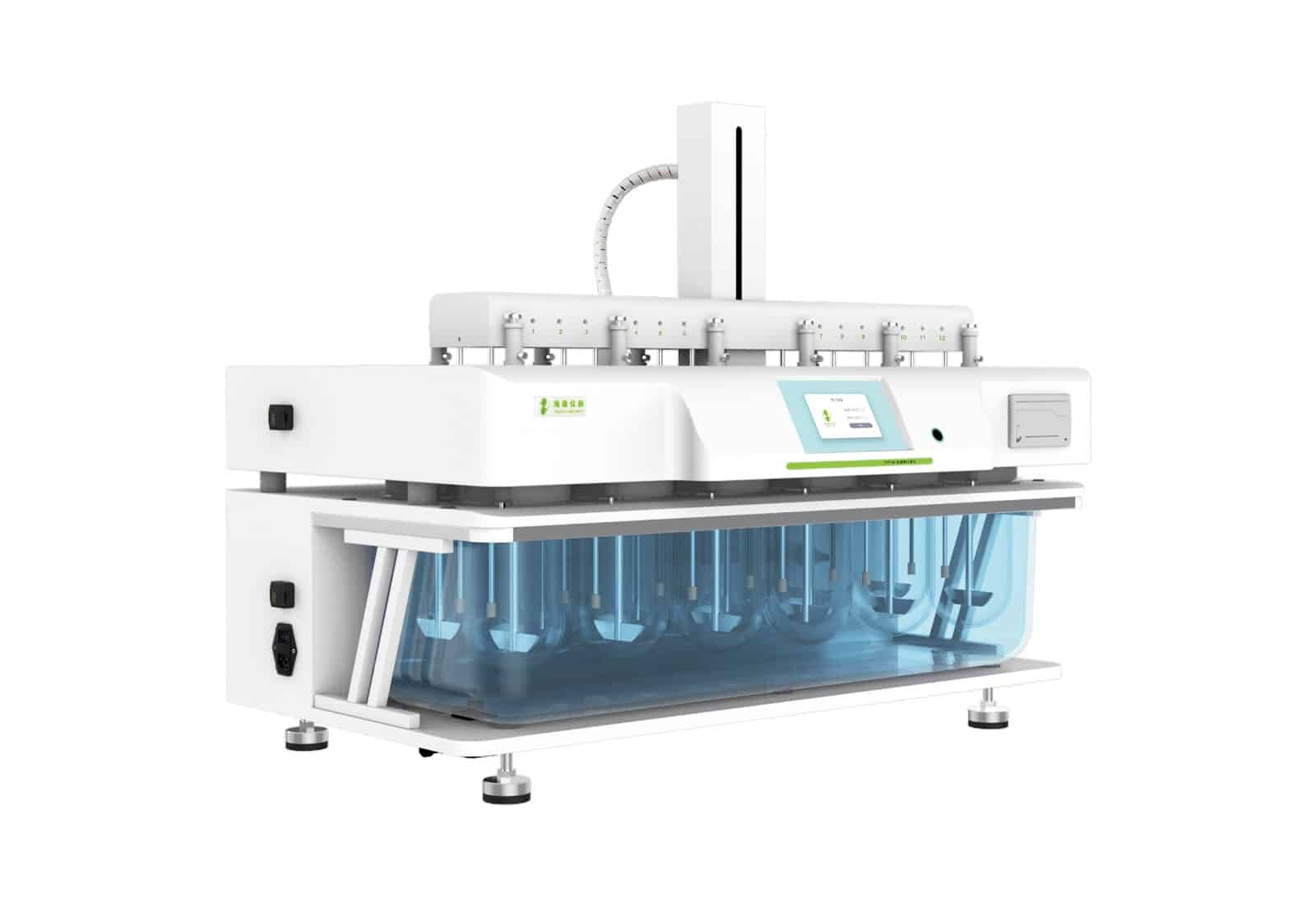

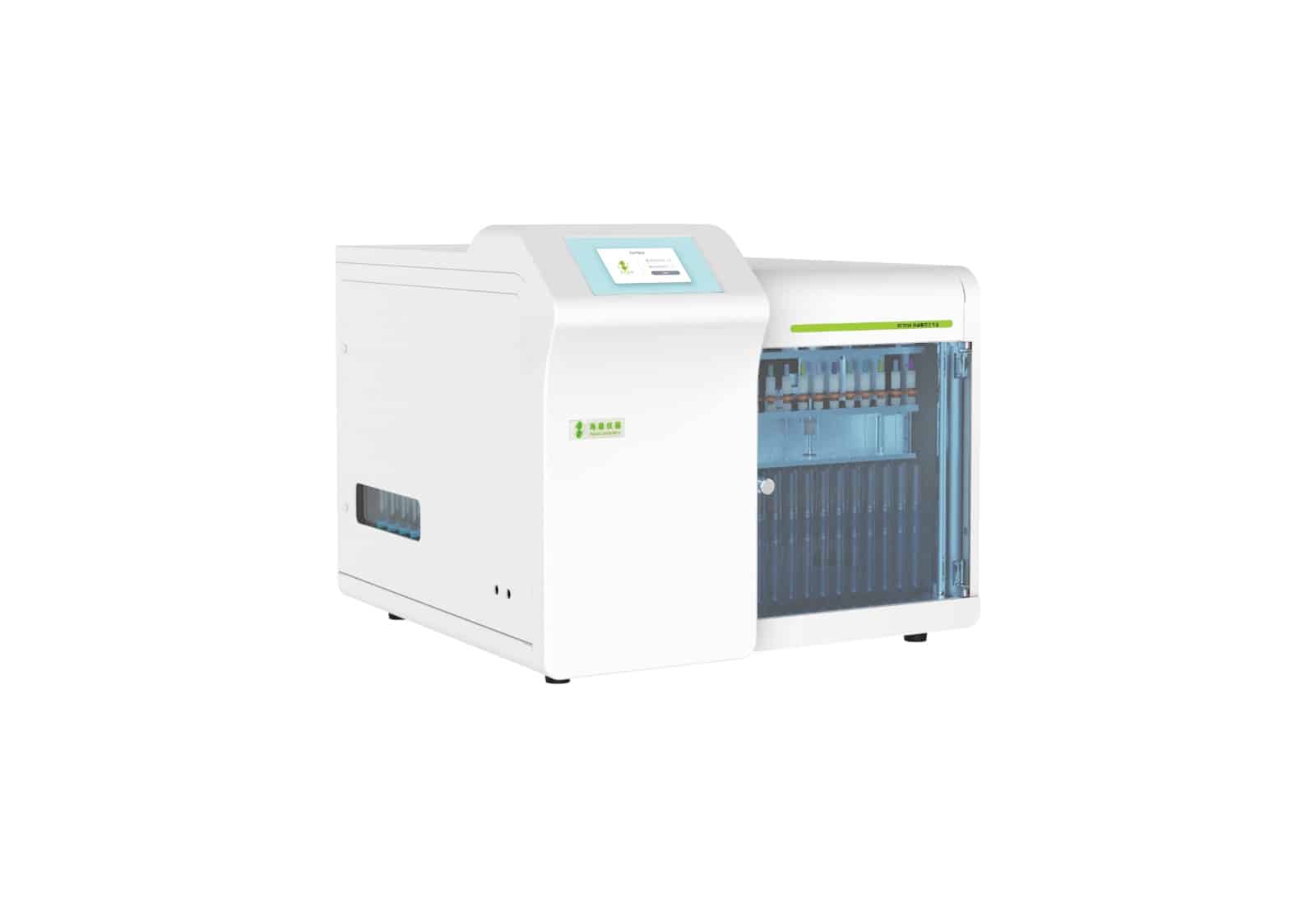

The DT12 Automatic Dissolution Sampling System is a high-capacity, fully automated solution designed for dissolution testing of oral solid dosage forms including tablets, capsules, and granules. This system integrates a 12-cup dissolution tester with a smart sampling workstation, offering precise, compliant, and efficient testing for pharmaceutical quality control and R&D applications.
Compliant with major pharmacopoeias, including the United States Pharmacopoeia, the Guiding Principles for Mechanical Verification of drug Dissolution Meter, Chinese Pharmacopoeia (2020), the DT12 is ideal for regulated environments where consistency, data integrity, and operational efficiency are critical.
DT12 Dimensions & Customisation
Designed with flexibility and scalability in mind, the DT12 allows for full 12-cup testing or dual-zone operation (6+6), enabling simultaneous tests under different conditions.
Customisable features include:
- Programmable methods for up to 5 dissolution test protocols
- Interchangeable paddle and basket shafts
- Automatic solvent volume-based height adjustment
- Optional accessories for specific pharmacopoeial methods
- 192-position sampling tray for test tubes and HPLC/UV vials
- RS232, USB, and Wi-Fi connectivity for data export and remote access
Technical parameters
| Basket (paddle) axis swing degree | ≤ 0.5 mm |
| Swing range of basket | ≤ 1.0 mm |
| Deviation between rotary rod and dissolution cup shaft | ≤ 2.0mm |
| Speed range | (1-300) RPM |
| Speed resolution | 0.01 RPM |
| Speed error | ≤ ±0.1 RPM |
| Temperature control range | room temperature to 55.0℃ |
| Temperature resolution | 0.01℃ |
| Temperature control accuracy | ≤ ±0.1℃ |
| Resolution of temperature measurement in dissolution cups | 0.01℃ |
| Temperature control accuracy in dissolution cups | ≤ ±0.1℃ |
| Sampling channels | 12 |
| Sampling holes | 192 |
| Sampling volume | 1mL-20mL |
| Minimum sampling interval | 1minute for the first time, and ≥3 minutes for subsequent samples |
| Sampling consistency | |
| Sampling accuracy | |
| Maximum sampling times |
Technical index
| DT12 | DT08 | DT06 | |
| Number of channels | 12 | 8 | 6 |
| Dissolution cup number | 12 | 8 | 6 |
| Sampling tray | 192 (SC12) | 128 bits (SC08) | x |
| Sampling times | 1- 16 (SC12/08) | 1- 16 (SC12/08) | 1- 16 (SC12/08) |
| Split Paddle Shaft | √ | √ | √ |
| Water tank lighting system | √ | √ | √ |
| Water level monitoring | √ | √ | √ |
| Overheat protection | √ | √ | √ |
| UV sterilization of water tank | √ | √ | √ |
| Synchronous dosing/manual dosing | √ | √ | √ |
| Preheating | √ | √ | √ |
| 7-inch color touch screen | √ | √ | √ |
| Audit Trail | √ | √ | √ |
| Multi-level account management | √ | √ | √ |
| Multifunctional sampling rack | √ | √ | x |
| Printer | √ | √ | x |
| Fingerprint unlocking | √ | √ | x |
| Temperature measurement in each cup | √ | √ | x |
| External isothermal rehydration cup | √ | √ | x |
| Speed adjustment in different zone | √ | √ | x |
Key Properties of the DT12 System
The DT12 features advanced automation, intelligent diagnostics, and secure data handling to streamline your dissolution workflow:
- Automated dosing, sampling, rehydration, and dilution
- 12-channel sampling system with high-precision syringes
- Independent temperature monitoring in each cup
- Built-in sterilisation system and water level monitoring
- Touchscreen control with Android OS
- Fingerprint access, password lock, and audit trail for 21 CFR Part 11 alignment
- Real-time fault alerts and self-diagnostics
Applications of the DT12 Dissolution System
Ideal for large-volume and high-throughput environments, the DT12 is commonly used in:
- Pharmaceutical manufacturing QC labs
- Formulation and development facilities
- University and academic research settings
- Government and regulatory inspection labs
It is especially effective for teams needing parallel testing of multiple formulations or conditions.
Work with Leading Dissolution Testing Equipment Suppliers in Australia
M-Kube is proud to distribute Hanon’s DT12 system in Australia, offering end-to-end support from configuration to post-installation. We work closely with QA/QC teams, scientists, and lab managers to ensure smooth implementation and compliance.
Why choose M-Kube:
- Local service and technical support
- Training and validation assistance
- Fast lead times and reliable spare parts access
- Custom configurations to meet unique protocols
Trusted by Industries Worldwide – Your Global Partner in Analytical Precision
The DT12 is trusted globally by pharmaceutical companies, CROs, and academic institutions. Backed by M-Kube’s local support, you gain the advantage of international-grade instrumentation with responsive Australian service.
✅ Strong Call to Action (CTA):
Need a high-capacity dissolution testing system in Australia?
Call us on +91 9898892994 or email marketing@mkubeenterprise.co.in to request a quote or more queries.
The DT12 delivers automation, compliance, and performance — all in one system.
